How to structure your ML code

Because real-world ML projects do not fit in one Jupyter notebook

Read on realworldml.xyz

Jupyter notebooks are a great tool for fast iteration and experimentation during your ML development.

However, they are not enough when you go beyond this experimentation phase, and want to build a real-world end-2-end ML app.

The problem

ML apps, like any other piece of software, can only generate business value once they are deployed and used in a production environment.

And the thing is, deploying all-in-one messy Jupyter notebooks from your local machine to a production environment is neither easy, nor recommended from an MLOps perspective.

Often a DevOps or MLOps senior colleague needs to re-write your all-in-on messy notebook, which adds excessive friction and frustration for you and the guy helping you.

So the question is

Is there a better way to develop and package your ML code, so you ship faster and better?

Yes, there is.

Let me show you.

Solution

Let me show you 3 tips to structure your ML project code with the help of Python Poetry.

What is Python Poetry? ✍️

Python Poetry is an open-source tool that helps you declare, manage and install dependencies of Python projects, ensuring you have the right stack everywhere.

You can install it for free in your system with a one-liner.

Tip 1 → Poetry new 🏗️

Imagine you want to build an ML app that predicts earth quakes.

Go to the command line and type

$ poetry new earth-quake-predictor

With this command Poetry generates the following project structure.

earth-quake-predictor
├── README.md
├── earth_quake_predictor
│   └── __init__.py
├── pyproject.toml
└── tests
    └── __init__.py

You can now cd into this newly created folder

$ cd earth-quake-predictor

and generate the virtual environment

$ poetry install

where all your project dependencies and code will be installed.

I recommend you build modular code, for different parts of your system, including:

• data processing and feature engineering.

• model training

• model serving

like this ↓

earth-quake-predictor
├── README.md
├── earth_quake_predictor
│   ├── __init__.py
│   ├── data_processing.py
│   ├── plotting.py
│   ├── predict.py
│   └── train.py
├── pyproject.toml
└── tests
    └── __init__.py

Tip 2 → Doing notebooks the right way 📔

If you are into notebooks, and want to use them while developing your training script, I recommend you create a separate folder to store them

earth-quake-predictor
├── README.md
├── earth_quake_predictor
│   ├── __init__.py
│   ├── data_processing.py
│   ├── plotting.py
│   ├── predict.py
│   └── train.py
├── notebooks
│   └── model_prototyping.ipynb
├── pyproject.toml
└── tests
    └── __init__.py

Now, instead of developing spaghetti code inside an all-in-one Jupyter notebook, I suggest you follow these 3 steps

• Write modular functions inside a regular .py file, for example a function that plots your data

  # File -> earth_quake_predictor/plotting.py

  def my_plotting_function():
    # your code goes here
    # ....

• Add this cell at the top of your Jupyter notebook to force the Jupyter kernel to autoreload your imports without having to restart the kernel

  %load_ext autoreload
  %autoreload 2

• Import the function and call it, without having to re-write it.

  from earth_quake_predictor.plotting import my_plotting_function

  my_plotting_function()

Tip 3 → Dockerize your code 📦

To make sure your code will work in production as it works locally, you need to dockerize it.

For example, to dockerize your training script you need to add a Dockerfile

earth-quake-predictor
├── Dockerfile
├── README.md
├── earth_quake_predictor
│   ├── __init__.py
│   └── ...
├── notebooks
│   └── ...
├── pyproject.toml
└── tests
    └── __init__.py

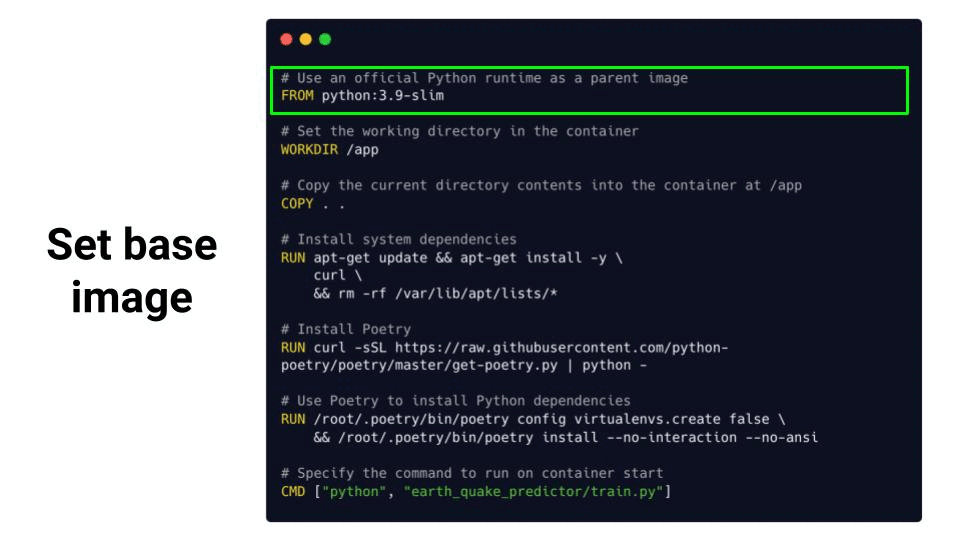

The Dockerfile in this case looks as follows

Where each instruction is a layer, that builds on top of the previous layer.

From this Dockerfile you can create a Docker image

$ docker build -t earth-quake-model-training .

and run your model training inside a Docker container

$ docker run earth-quake-model-training

BOOM!

That’s it for today guys. I hope you learned something new,

Enjoy the weekend.

Peace, Love and Laugh.

Pau
