How to design a real-time ML system to predict crypto prices

Today you will learn how to design a modular and scalable real-time ML system that predicts short-term crypto prices.

Let’s get to it!

The problem

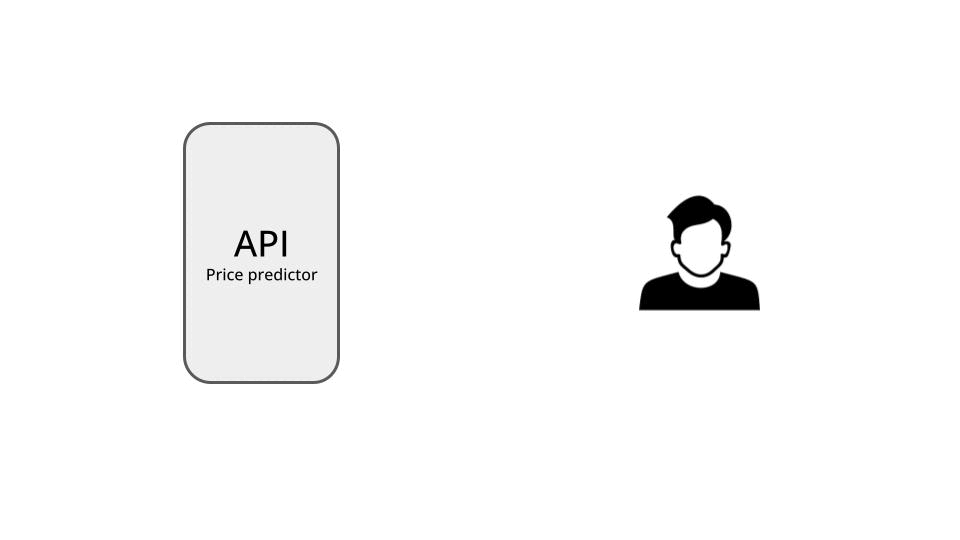

We want to build a real-time API that serves in real-time short-term predictions on crypto prices.

For example
To predict the price of Ethereum (ETH) in the next 10 seconds.

This API can be consumed by a human trader, or (even better) an algorithmic trading bot to improve the return of a trading strategy.

For example
A very naive strategy to map predictions to actions is to

• Buy ETH when the predicted price return by our API goes up

• Sell ETH when the predicted price return by our API goes down

A more sophisticated algorithmic trading strategy would consume the predictions generated by our API, and take them into account, together with other factors, to come up wit the final action.

Today we will NOT focus on constructing trading strategies, but on designing a modular and scalable machine learning system that delivers these predictions in real time.

The ML system behind our API

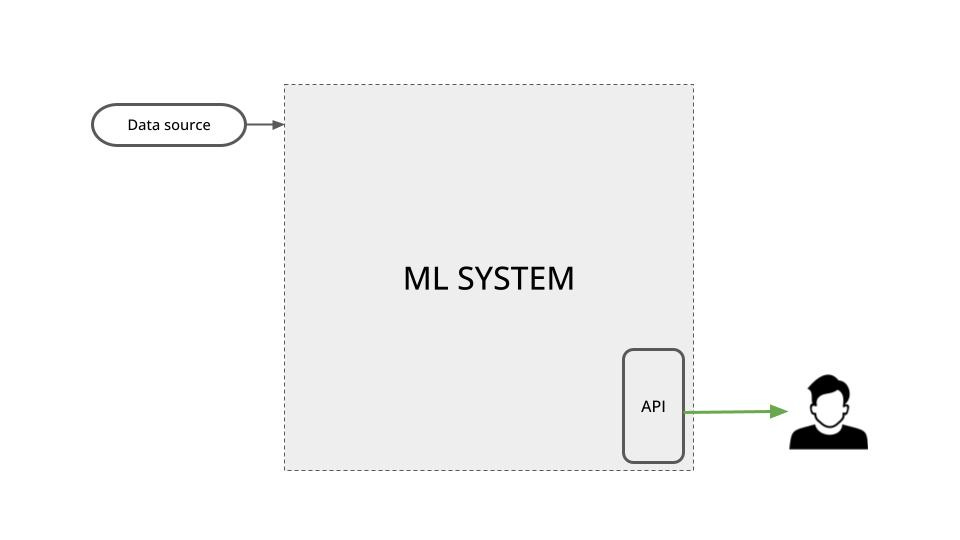

Our API is just one component of an ML system that continuously

• Ingests raw market data in real-time and

• Generates new predictions using a Machine Learning model.

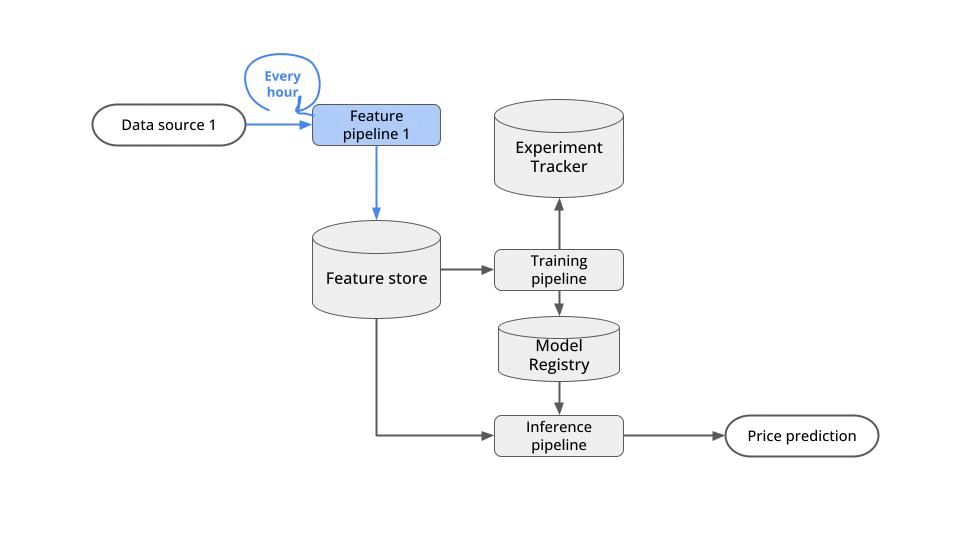

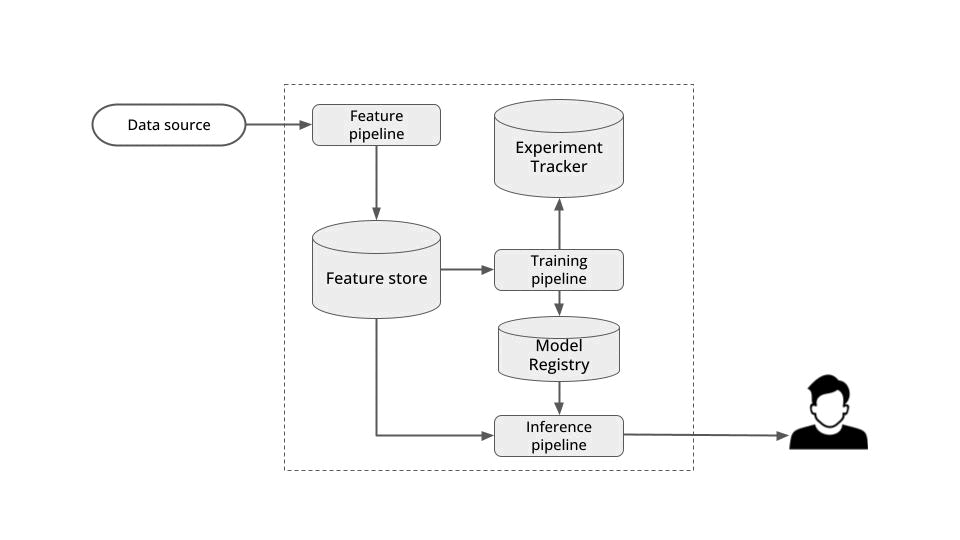

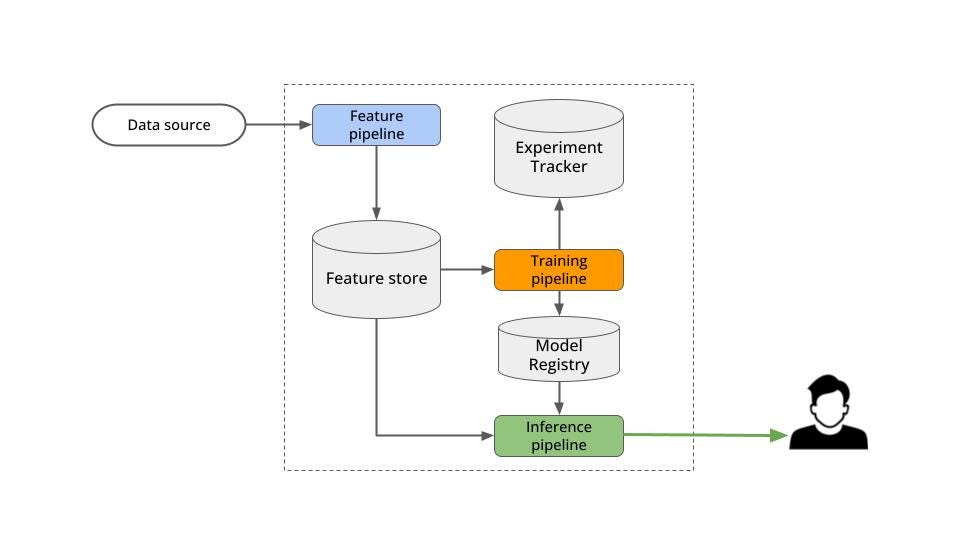

Under the hood, this system can be decomposed into 3 types of pipelines:

→ Feature pipelines → ingest raw market data and generate predictive features.

→ The Training pipeline → ingests training data and generates an ML model.

→ The Inference pipeline → loads the ML model and the most recent features from the Feature Store, and generates fresh predictions.

These are the steps to build the system ↓

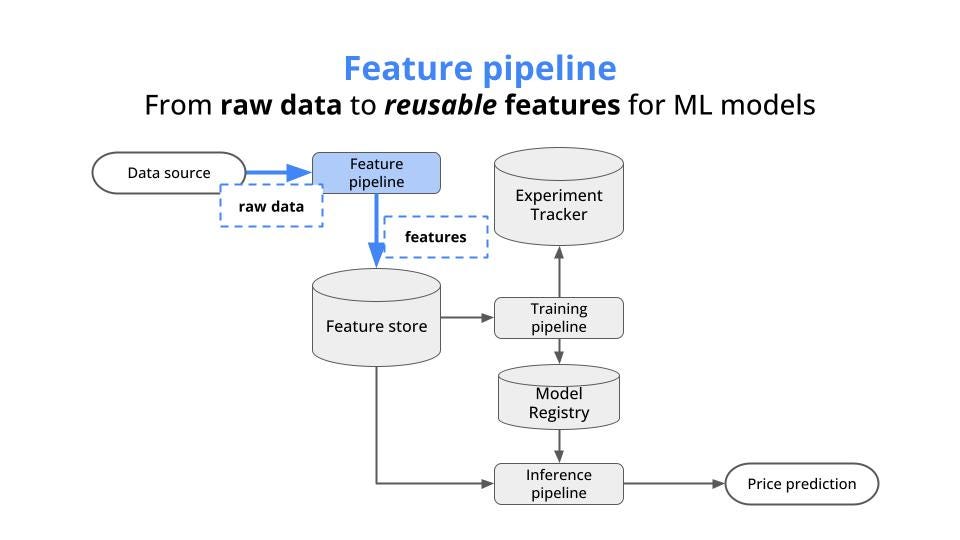

Step 1. Build the feature pipeline

A Feature pipeline that

→ ingests real-time price data from an third party API.
→ transforms price data into 10-second Open-High-Low-Close prices, and
→ pushes it to the Feature Store.

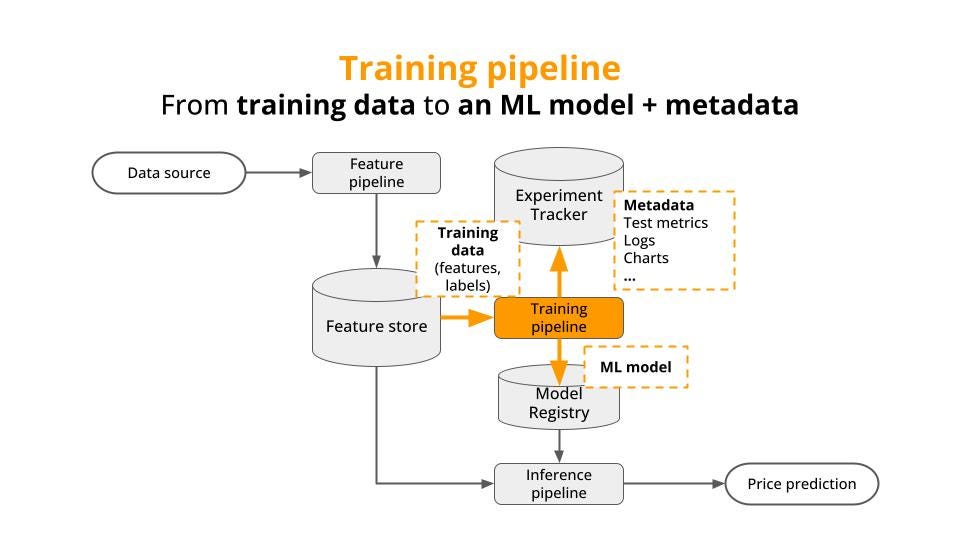

Step 2. Build the training pipeline

A Training pipeline that

→ ingests training data from the feature store,
→ trains a predictive ML model, and
→ pushes the model to the model registry

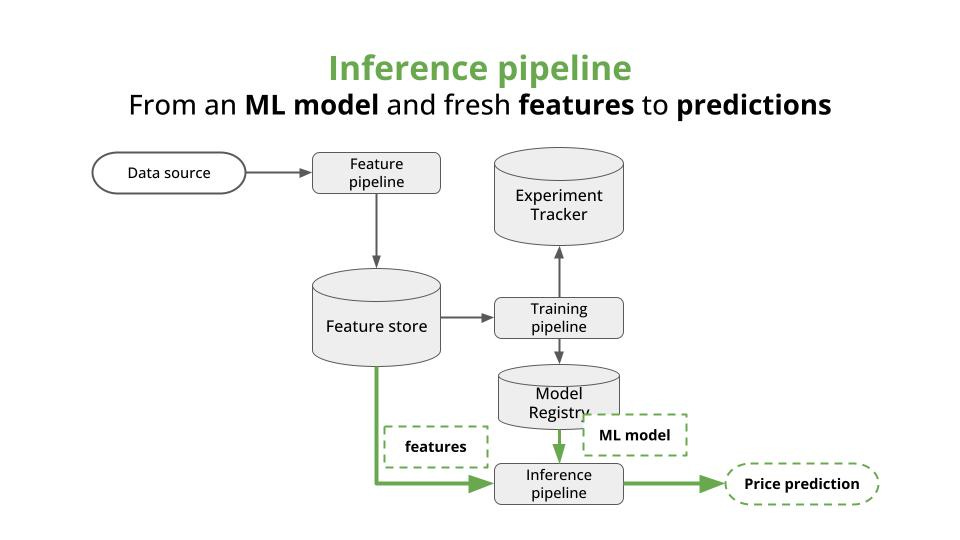

Step 3. Build the inference pipeline

An Inference pipeline that

→ load the model from the registry and recent features, and
→ serves fresh predictions through our API.

Step 4. Iteratively improve the system

Once this first version is working, you start improving each component of your system, for example by

• Building more feature pipelines, to provide more signals to your ML model.



• Improving the underlying ML model



• Optimizing the inference pipeline to produce faster predictions.
