Feature engineering in real-time

with Kafka, Docker and Python

Let me show you step-by-step how to do feature engineering in real-time using Apache Kafka, Docker and Python.

The problem

Feature engineering is about transforming raw data into predictive signals for your Machine Learning model.

And for many real-word problems, you need to run this transformation in real-time. Otherwise, your features will be irrelevant.

For example 💁

Imagine you build a Machine Learning model that can predict stock price changes in the next 1-minute, but the input features the model needs are computed with an 1-hour delay.

No matter how good your model is, the whole system will NOT work 😔

So, as a professional ML engineer, you need to go beyond static CSV files and local Jupyter notebooks, and learn the tools that help you build production-ready real-time systems.

Let’s go through a step-by-step example.

Hands-on example 👩‍💻🧑🏽‍💻

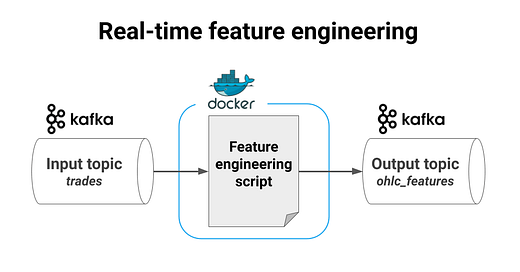

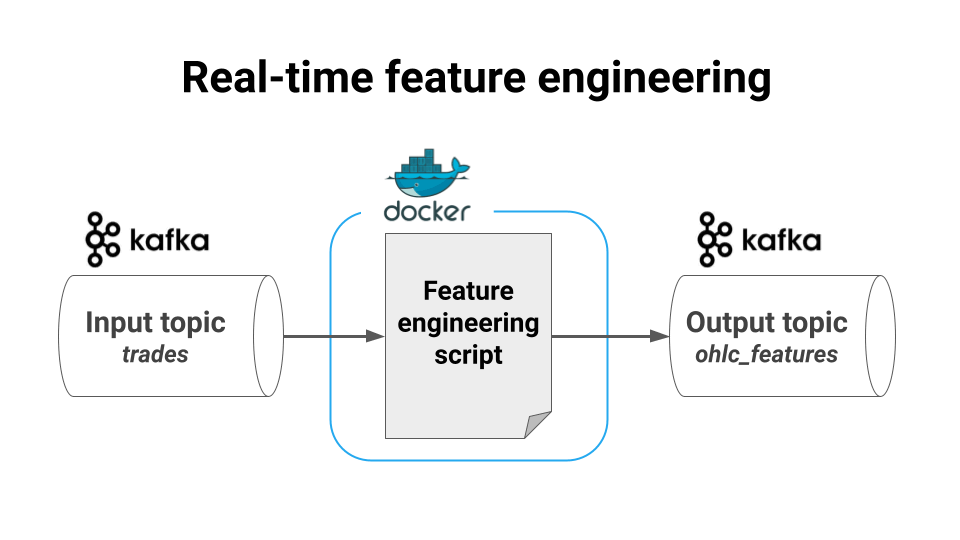

Let me show you how to build a real-time feature-engineering service that

• reads raw crypto-trade data from a Kafka topic (input topic),

• transforms this raw data into Open-High-Low-Close features using stateful window aggregations, and

• saves the final features into another Kafka topic (output topic), so the data is accessible to downstream services.

These are the tools we will use to build this:

• Python Poetry to package our Python code professionally 😎

• Quix Streams to do window aggregations in real-time ⚡

• Docker to containerize our service, and ease the deployment to a production-environment 📦

• Docker Compose to test things out locally.

• A Kafka message broker, in this case Redpanda, to enable communication between our service and the rest of the infrastructure.

Steps

You can find all the source code in this repository
→ Give it a star ⭐ on Github to support my work 🙏

These are the 4 steps to build a real-time feature-engineering service.

Step 1. Create the project structure

We will use Python Poetry to create our ML project structure. You can install it in your system with a one-liner.

$ curl -sSL https://install.python-poetry.org | python3 -

Once installed, go to the command line and type

$ poetry new trade_to_ohlc --name src

to generate the following folder structure

trade_to_ohlc
├── README.md
├── src
│   └── __init__.py
├── pyproject.toml
└── tests
    └── __init__.py

Then type

$ cd trade_to_ohlc && poetry install

to create your virtual environment and install your local package src in editable mode.

Step 2. Start a local Kafka cluster with Docker Compose

To develop and run our feature engineering service locally we first need to spin up a local lightweight Kafka cluster.

And the simplest-most-straight-forward way to do so is to use Docker an Redpanda.

What is Redpanda? 🟥🐼
Redpanda is a Kafka API-compatible data streaming platform, written in C++, that eliminates most of the of complexities that the original Apache Kafka has, while improving performance.

To spin up a minimal Redpanda cluster with one broker you add this docker-compose.yml

version: '3.7'
name: ohlc-data-pipeline
services:

  redpanda:
    container_name: redpanda
    image: docker.redpanda.com/redpandadata/redpanda:v23.2.19
    ...

  console:
    container_name: redpanda-console
    image: docker.redpanda.com/redpandadata/console:v2.3.8
    ...
    depends_on:
      - redpanda

Now go to the command line and start your local Redpanda cluster by running

$ docker compose up -d

Congratulations! You have a Redpanda cluster up and running.

It is time to focus on the feature engineering logic.

Step 3. Feature engineering script

Our script needs to do 3 things:

1. Read input data from a Kafka topic,

2. Transform this data into OHLC features, and

3. Save the final data into another Kafka topic.

And the thing is, you can do the 3 things in Python using the Quix Streams library.

Install the Quix Streams library inside your virtual environment

$ poetry add quixstreams

And create a new Python file to define your feature engineering

dashboard
├── README.md
├── main.py
├── src
│   └── __init__.py
├── pyproject.toml
└── tests
    └── __init__.py

Inside this main.py file you

1. Create a Quix Application, which will handle all the low-level communication with Kafka for you.

from quixstreams import Application
app = Application(
    broker_address=os.environ["KAFKA_BROKER_ADDRESS"],
    consumer_group="json__trade_to_ohlc_consumer_group"
)

1. Define the input and output Kafka topics of our application

input_topic = app.topic('raw_trade', value_deserializer="json")
output_topic = app.topic('ohlc', value_serializer="json")

1. Define you feature engineering logic, in this case we use 10-second window aggregations, using a Pandas-like API.

# Create your Streaming data frame
sdf = app.dataframe(input_topic)

# 10-second window aggregations
sdf = sdf.tumbling_window(timedelta(seconds=WINDOW_SECONDS), 0) \
    .reduce(reduce_price, init_reduce_price) \
    .final()

1. Produce the result to the output topic

sdf = sdf.to_topic(output_topic)

1. Start processing incoming messages with

app.run(sdf)

If you now run your feature engineering

$ poetry run python main.py
...
INFO:quixstreams.app:Waiting for incoming messages

your script will just hang, waiting for incoming messages to arrive from Kafka.

Why there are no incoming messages? 🤔

Simply because there is no data in the input Kafka topic “trades”.

To fix this you can either

1. Write a second script that dumps mock raw data into the topic, or

2. Use the actual service that will generate production raw data.

In this case, I opted for 2, and here you can find the complete implementation of the trade producer service.

The trade producer service dumps production raw data

Step 4. Dockerization of our service

So far you have a working feature engineering service locally. However, to make sure your app will work once deployed in a production environment, like a Kubernetes Cluster, you need to dockerize it.

For that, you need to add a Dockerfile to your repo

trade_to_ohlc
├── Dockerfile
├── README.md
├── main.py
├── poetry.lock
├── pyproject.toml
├── src
│   └── ...
└── tests
    └── __init__.py

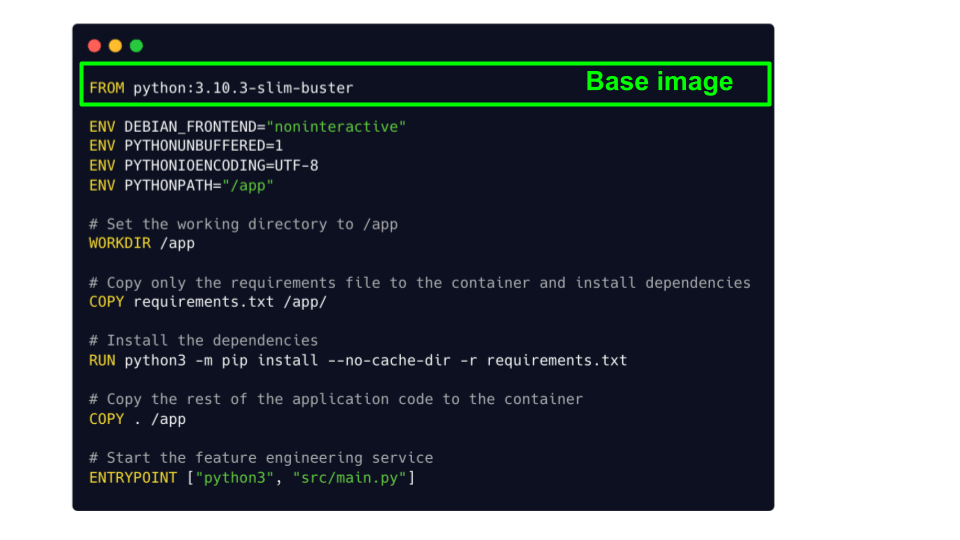

with the following layered instructions

From this Dockerfile you can build your Docker image

$ docker build -t ${DOCKER_IMAGE_NAME} .

and run the container locally

$ docker run ${DOCKER_IMAGE_NAME}

Another way to spin up your service is to add it to your docker-compose.yml file, together with the trade producer service.

version: '3.7'
name: ohlc-data-pipeline
services:

  redpanda:
    container_name: redpanda
    image: docker.redpanda.com/redpandadata/redpanda:v23.2.19
    ...

  console:
    container_name: redpanda-console
    image: docker.redpanda.com/redpandadata/console:v2.3.8
    ...
    depends_on:
      - redpanda

  trade-producer:
    container_name: trade-producer
    restart: always
    build:
      context: "./trade_producer"
    ...
    depends_on:
      - redpanda

  trade-to-ohlc:
    container_name: trade-to-ohlc
    restart: always
    build:
      context: "./trade_to_ohlc"
    ...
    depends_on:
      - redpanda

Now go to the command line and run everything with

$ docker compose up -d

Congratulations! You have a production-ready real-time feature engineering script up and running.
